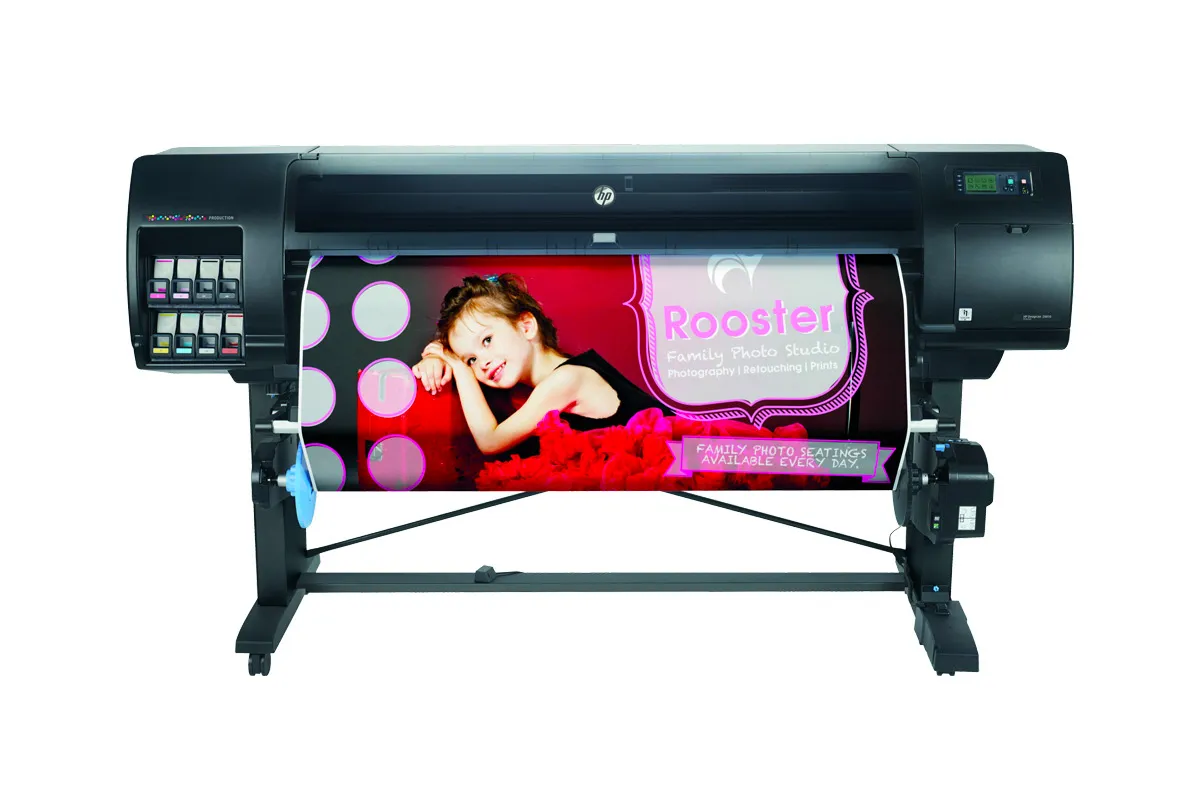

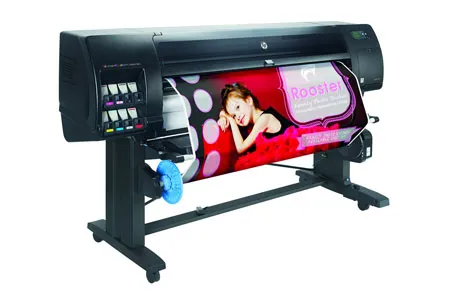

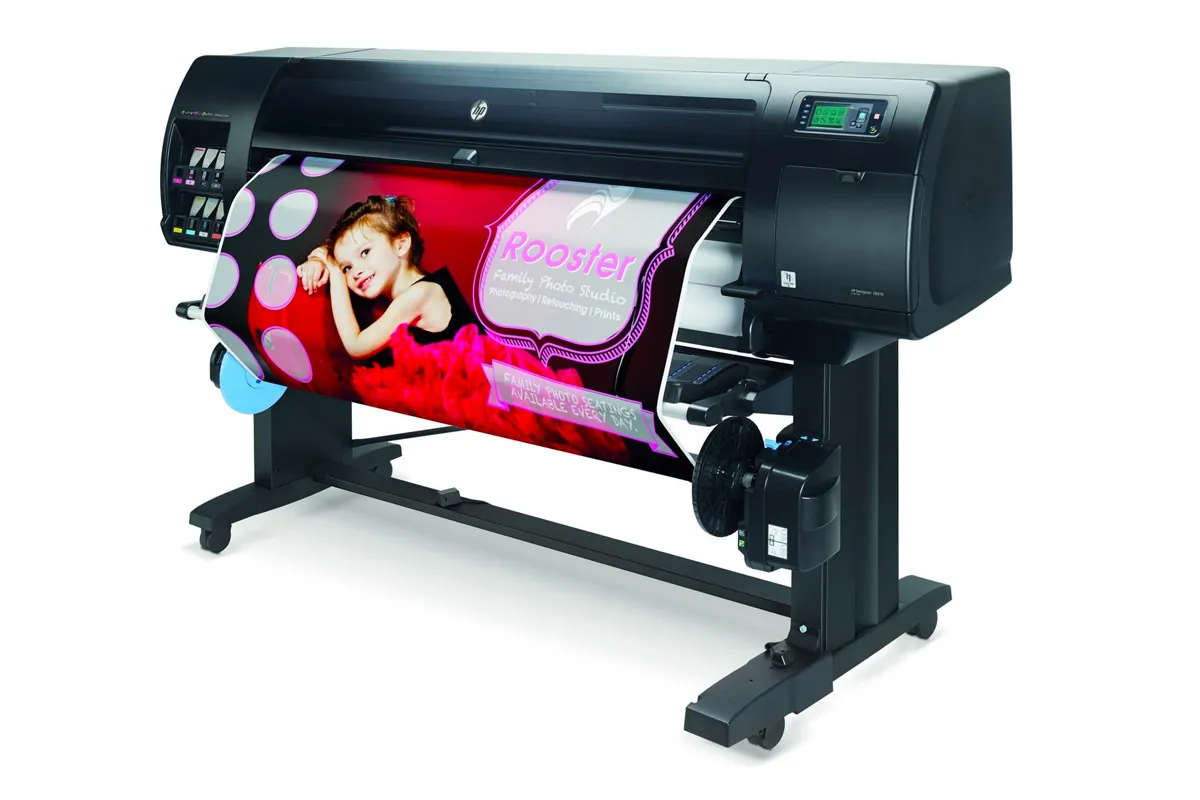

HP DesignJet Z6810
Thomas Printworks logo

HP DesignJet Z6810

  • HP DesignJet Z6810
  • HP DesignJet Z6810
  • HP DesignJet Z6810

Product Overview

Meet customer high-quality expectations with the fastest production printing solution.

IMPRESSIVE – Meet high-quality expectations
  • Help your customers stand out from impactful photos to detailed maps/line drawings, with optimized printheads.
  • Avoid rework with consistent, accurate color across prints and printers, with embedded spectrophotometer.3
  • Meet your customers’ expectations for precise colors with HP Professional PANTONE® color emulation.4
PRODUCTIVE — Increase your production volumes
  • Accommodate production peaks with print speeds up to 212 ft²/hr on glossy and 548 ft²/hr on plain paper.5
  • Handle more jobs with 500 GB hard disk capacity.
  • Work without interruption with long media rolls, 775-ml HP ink cartridges, and a built-in take-up reel.
RELIABLE — No need to change the way you work
  • Seamlessly integrate with the market-leading RIPs, enabled by HP’s RIP certification program.2
  • Turn operator efficiency into operating profit with HP SmartStream job preparation and processing software.
  • Easily create content and submit jobs using the HP Applications Center.6
  • Enjoy one-click printing that also helps reduce media waste using HP Click printing software.7

Key Specifications

Print Technology Processor Type Memory Hard Drive Resolution
Océ CrystalPoint Technology E8400 3.0 GHz Core 2 Duo 4 GB DDR2 DRAM 2 × 500 GB 600 dpi
Print
Print Resolution Up to 2400 x 1200 optimized dpi
Technology HP Thermal Inkjet
Ink Types Pigment-based
Ink Cartridges 8 (cyan, magenta, yellow, matte black, photo black, chromatic red, light gray, light magenta)
Printheads 8 (cyan, magenta, yellow, matte black, photo black, chromatic red, light gray, light magenta)
Image Quality
Color Accuracy Median < 1.25 dE2000, 95% of colors < 2.75 dE2000
Short Term Color Stability < 1 dE2000 less than 5 minutes
Lont Term Print-to-Print Repeatability Average < 0.5 dE2000, 95% of colors < 1.25 dE2000
Maximum Optinal Density 4.5 L* min/2.31 D
Media
Handling Roll feed, automatic horizontal cutter, media bin5, take-up reel
Roll Size 42-in: 11 to 42 in (280 to 1067 mm)
60-in: 11 to 60 in (280 to 1524 mm)
Grammage 80 to 500 g/m²
Thickness Up to 22 mil (Up to 0.6 mm)
Applications Exhibition and event graphics; Graphics design; Indoor posters; Layouts and comps; Light boxes - paper; Line drawings; Maps; Office Graphics; Orthophotos; Photo maps; Point of sale/display; POP/POS; Posters; Presentations; Renderings; Schematics; Technical presentations
Memory 64 GB (virtual)
Hard Disk 500 GB HDD
Connectivity
Interfaces Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot
Print Languages Standard: HP-GL/2, HP-RTL, CALS G4
Optional: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG
Drivers (included) Raster drivers for Windows and macOS; PostScript drivers for Windows and macOS with optional PostScript/PDF Upgrade Kit
Security Features SNMPv3, Control Panel lock levels, Certificates management, IPsec, SSL, Secure file erase, Secure disk erase
Dimensions (W×D×H)
Printer 42-in: 77.5 × 27.2 × 53.9 in (1970 × 690 × 1370 mm)
60-in: 95.7 × 27.2 × 53.9 in (2430 × 690 × 1370 mm)
Shipping 42-in: 89.8 × 28.9 × 47.2 in (2280 × 735 × 1200 mm)
60-in: 105.6 × 29.5 × 47.2 in (2684 × 750 × 1200 mm)
Weight
Printer 42-in: 271 lb (123 kg)
60-in: 419 lb (190 kg)
Shipping 42-in: 390.2 lb (177 kg)
60-in: 489.4 lb (222 kg)
What's in the box HP DesignJet Z6810 Production Printer, spindle, printheads, introductory ink cartridges, maintenance cartridge, printer stand, media bin5, take-up reel6, 3-in spindle adapter kit, quick reference guide, setup poster, startup software, power cord
Software Included Printer drivers, HP Click, HP Applications Center, HP DesignJet Utility including HP Color Center
Environmental Ranges
Operating Temperature 41 to 104°F (5 to 40°C)
Operating Humidity 20 to 80% RH
Acoustics
Sound Pressure 53 dB(A) (printing), 39 dB(A) (ready), 39 dB(A) (sleep)
Sound Power 7.0 B(A) (printing), 5.5 B(A) (ready), 5.5 B(A) (sleep)
Power
Consumption 270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep); < 0.3 watts (off)
Requirements Input voltage (auto ranging): 100 - 127 V (±10%), 5 A; 220 - 240 V (±10%), 3 A; 50/60 Hz (±3 Hz)
Certification
Safety USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia (GOST); Singapore (PSB); China (CCC); Argentina (IRAM); Mexico (NYCE); Korea (KC)
Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP)
Enviromental ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT Bronze
Warranty One-year limited hardware warranty

Footnotes

1 Compared with large-format photo inks inkjet printers under $25,000 USD for graphics applications. Based on the fastest-rated color speeds as published by manufacturers as of June, 2017. Test methods vary.
3 Embedded in the HP DesignJet Z6810 Production Printer series is an i1 spectrophotometer from X-Rite. Close collaboration between HP and X-Rite ensures a reliable solution that’s been thoroughly tested to meet customer demands for ease, quality, and dependability.
4 HP Professional PANTONE® color emulation and Adobe PostScript®/PDF upgrade kit sold separately.
5 Using glossy paper and Normal mode, HP DesignJet Z6810 Production Printers can achieve print speeds up to 212 ft²/hour. Using plain paper and Normal mode, HP DesignJet Z6810 Production Printers can achieve speeds up to 548 ft²/hour.
6 Requires an HP Applications Center account, Internet connection, and connected Internet-capable device. For more information, see hpapplicationscenter.com.
7 Once image is selected, one-click printing when printing the entire file without any modifications to the print settings. Applicable to PDF, JPEG, TIFF, and HP-GL/2 files.
